What
is a Cursor?
To
process any DML or SELECT queries, Oracle allocates an area of memory on the
database server, known as context area
Cursor
is a pointer to the context area
Context
area contains information about the SQL statement and the set of data returned
or affected by that statement
Cursor
is a mechanism by which one can name that work area and manipulate the
information within it
Cursor
Types
Two Types
1.Static
Implicit Cursors
Explicit Cursors
2.Dynamic
REF Cursors
Implicit
Cursors
PL/SQL
implicitly declares a cursor for all SQL data manipulation statements on a set
of rows, including queries that return
only one row
For
queries that return more than one row, you can explicitly declare a cursor to
process the rows individually
We
can refer to the most recent implicit cursor by the name SQL
Implicit
Cursors - Attributes
%FOUND
Attribute: used to check whether a DML Statement has affected one or many rows
Until
the DML or SELECT statement is executed, it yields NULL
Yields
TRUE if the DML affects one or more rows, or a SELECT INTO statement returns
one or more rows.
Otherwise
yields FALSE.
%ISOPEN
Attribute: always FALSE for Implicit Cursors
Yields
TRUE if the cursor is open else returns FALSE.
Oracle
closes the SQL cursor automatically after executing its associated SQL
statement. As a result, %ISOPEN always yields FALSE.
%NOTFOUND
Attribute: used to check whether a DML statement has failed to change rows
%NOTFOUND
is the logical opposite of %FOUND
Yields
TRUE if the DML statement affects no rows, or a SELECT INTO statement returns
no rows
Otherwise
it yields FALSE
%ROWCOUNT
Attribute: used to find out how many rows are affected so far
%ROWCOUNT
yields the number of rows affected by the DML statement, or returned by a
SELECT INTO statement
Yields
0 if the DML statement affected no rows, or a SELECT INTO statement returned no
rows
Implicit
Cursor: Example 1
Using SQL%ROWCOUNT
DECLARE
v_tot_rows NUMBER (3);
BEGIN
DELETE FROM emp
WHERE deptno = 10;
/* PL/SQL will use an
implicit cursor to process the above statement */
v_tot_rows := SQL%ROWCOUNT;
/* Implicit Attribute
%ROWCOUNT is used to find the number of
rows affected by the DELETE command */
DBMS_OUTPUT.put_line
('Total records deleted : ' || v_tot_rows);
END;
Implicit
Cursor: Example 2
Using SQL%FOUND
DECLARE
v_empno NUMBER (4) := &eno;
BEGIN
DELETE FROM emp
WHERE empno = v_empno;
IF SQL%FOUND
THEN
/* Making use of %FOUND to
find out whether at least one row was affected by the DELETE statement */
DBMS_OUTPUT.put_line
('Delete successful');
END IF;
END;
Need
for Explicit Cursors
Implicit
cursors are declared and managed automatically by PL/SQL. We do not have any
control over the processing of implicit cursors.
Explicit
cursors give us the complete control over opening, closing and fetching from an
explicit cursor, including the number of rows fetched.
We
can declare explicit cursors only for SELECT queries. Generally explicit
cursors are used when the SELECT query is returning multiple rows and we want
to process one row at a time.
Explicit
cursors can take parameters. So the cursor can be opened for a different result
set in each execution by passing on different values for the parameters.
Explicit
Cursors
Are
declared and named explicitly by the developer
Manipulated
through specific statements in the block’s executable section for queries that
return more the one row
Processing Explicit Cursors:
Steps
to Process Explicit Cursors
Cursor
Declaration
Declaring
a cursor defines the name of the cursor and associates it with a SELECT
Statement
CURSOR cursor_name
IS select_statement;
Opening
a Cursor
The
OPEN statement executes the query and binds any variables that are referenced.
Rows identified by the query are called the active set. The active set pointer
is set to the first row
OPEN cursor_name;
Fetching
from a Cursor
The
row pointed by active set pointer can be fetched from a cursor into variable/s
After
each fetch the cursor is checked for any existing rows
FETCH
cursor_name INTO list_of_variables;
FETCH cursor_name INTO
record_type_variable;
Closing
a Cursor
When all of the active
set has been retrieved, the cursor should be closed. This tells PL/SQL that the
program is finished with the cursor, and the resources associated with it can
be freed.
CLOSE
cursor_name;

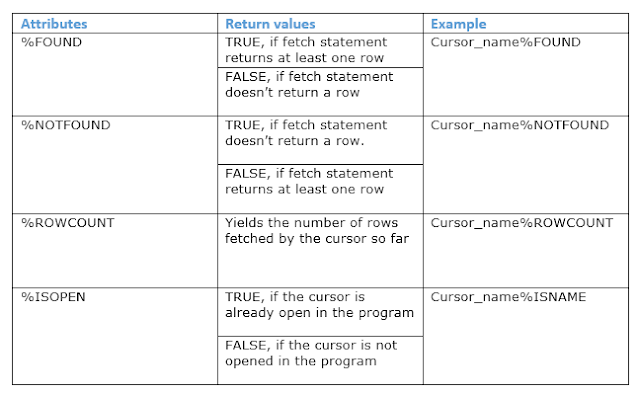

Explicit
Cursors: Attributes
Can be used with Implicit as well as
Explicit cursors for obtaining information about a cursor
Explicit
Cursor: Example -1
DECLARE
-- Step 1: Cursor declaration
CURSOR empcur
IS
SELECT empno, ename
FROM emp;
v_empno emp.empno%TYPE;
v_name emp.ename%TYPE;
BEGIN
OPEN empcur;
--
Step2: Open the Cursor for a query
LOOP
-- Step 3: Fetch the values
from table results into PL/SQL variables.
FETCH empcur
INTO v_empno, v_name;
EXIT WHEN empcur%NOTFOUND;
DBMS_OUTPUT.put_line
(v_empno || ' ' || v_name);
END LOOP;
CLOSE empcur; -- Step 4: Close the cursor
END;
Explicit
Cursor: using %TYPE and RECORD
DECLARE
TYPE t_emprec IS RECORD (
ename emp.ename%TYPE,
sal emp.sal%TYPE,
job emp.job%TYPE
);
r_emp t_emprec;
CURSOR c_emp
IS
SELECT ename, sal, job
FROM emp;
BEGIN
OPEN c_emp;
LOOP
FETCH c_emp
INTO r_emp;
EXIT WHEN c_emp%NOTFOUND;
DBMS_OUTPUT.put_line
(r_emp.ename || ', ' || r_emp.sal || ', '
||
r_emp.job
);
END LOOP;
CLOSE c_emp;
END;
Cursor
WHILE Loop: Example
DECLARE
CURSOR c_emp
IS
SELECT empno, ename
FROM emp;
v_empno emp.empno%TYPE;
v_ename emp.ename%TYPE;
BEGIN
OPEN c_emp;
FETCH c_emp
INTO v_empno, v_ename;
WHILE c_emp%FOUND AND c_emp%ROWCOUNT <= 5
LOOP
DBMS_OUTPUT.put_line
(v_empno || ', ' || v_ename);
FETCH c_emp
INTO v_empno, v_ename;
END LOOP;
CLOSE c_emp;
END;
Cursor
FOR Loops
LOOP
… END LOOP as well as WHILE LOOP … END LOOP, require explicit processing of the
cursor with OPEN, FETCH and CLOSE statements
With
CURSOR FOR LOOPs, no opening, fetching, closing of Cursors is required
Implicitly
declares Record Type Variable
Cursor
FOR Loops: Example
DECLARE
CURSOR emp_dept_cur
IS
SELECT empno, ename, sal, dept.deptno AS dno, dept.dname
FROM emp, dept
WHERE emp.deptno = dept.deptno;
BEGIN
FOR v_rec IN emp_dept_cur
/* The loop variable v_rec is automatically declared and is allocated
the same data type as the ROWTYPE of the cursor */
LOOP
DBMS_OUTPUT.put_line
('Employee Number :' || v_rec.empno);
DBMS_OUTPUT.put_line
('Employee Name :' || v_rec.ename);
DBMS_OUTPUT.put_line
('Employee Salary :' || v_rec.esal);
DBMS_OUTPUT.put_line
('Employee Deptno :' || v_rec.dno);
DBMS_OUTPUT.put_line
('Emp Dept Name :' || v_rec.dname);
END LOOP;
END;
Example:
Using INSERT inside the FOR Loop
CREATE TABLE mybonus(
myeno NUMBER(4),
bonusamt NUMBER(5)
);
DECLARE
bonus REAL;
CURSOR empcur
IS
SELECT empno, sal, comm
FROM emp;
BEGIN
FOR emprec IN empcur
LOOP
bonus := (emprec.sal * 0.05) + (emprec.comm * 0.25);
INSERT INTO mybonus
VALUES (emprec.empno, bonus);
END LOOP;
COMMIT;
END;
Parameterized
Cursors
Parameters allow values
to be passed to a cursor when it is opened and to be used in the query when it
executes
Different active set each
time based on a parameter value that is passed to a cursor
CURSOR cursor_name(para_name1 datatype,
para_name2 datatype,…)
IS
select_statement;
Parameterized
Cursors: Example
DECLARE
CURSOR par_cur (p_deptno NUMBER, p_job VARCHAR2)
IS
SELECT empno, ename
FROM emp
WHERE deptno = p_deptno AND UPPER (job) = UPPER (p_job);
v_deptno emp.deptno%TYPE := &dno;
v_job emp.job%TYPE := '&job';
BEGIN
FOR emp_record IN par_cur (v_deptno, v_job)
LOOP
DBMS_OUTPUT.put_line
('Empno :' || emp_record.empno);
DBMS_OUTPUT.put_line
('Ename :' || emp_record.ename);
END LOOP;
END;
Advanced
Cursors
SELECT
FOR UPDATE CURSOR
If
FOR UPDATE clause is present,
exclusive row locks are taken on the rows in the active set before the OPEN
returns
Locks
prevent other sessions from changing the rows in the active set until the
transaction is committed
CURSOR cursor_name IS SELECT……FROM….FOR
UPDATE [OF column_reference] [NOWAIT|WAIT n]
Example:
CURSOR emp_cursor IS
SELECT empno,ename,sal FROM emp
WHERE deptno=30
FOR UPDATE OF sal NOWAIT;
NOWAIT:
OPEN will return immediately with Oracle error if rows are locked by another
session
WAIT n:
If rows are locked by another session and are not released in “n” seconds then
OPEN will return with Oracle error
WHERE
CURRENT OF Clause
Used
for referencing the current row from an explicit cursor
Used
along with UPDATE & DELETE Statements for Current Row
Must
include FOR UPDATE clause while declaring a cursor
Eg. # 1
DECLARE
CURSOR emp_cursor
IS
SELECT sal
FROM emp
WHERE deptno = 30
FOR UPDATE OF sal NOWAIT;
BEGIN
FOR emp_record IN emp_cursor
LOOP
UPDATE emp
SET sal = emp_record.sal * 0.1
WHERE CURRENT OF emp_cursor;
END LOOP;
COMMIT;
END;
UPDATE and DELETE
statements can use a WHERE CURRENT OF clause if they reference a cursor
declared with FOR UPDATE clause.
It indicates that the
UPDATE or DELETE should modify the current row identified by the FOR UPDATE
cursor.
Syntax:
[UPDATE | DELETE ] ... WHERE
CURRENT OF cursor_name;
By using WHERE CURRENT
OF, you do not have to repeat the WHERE clause in the UPDATE/DELETE statement.
WHERE
CURRENT OF Clause: Example
CREATE TABLE emp_history(
myeno NUMBER(4),
myhiredt DATE);
/
DECLARE
CURSOR emp_cur
IS
SELECT empno, hiredate
FROM emp
WHERE hiredate < SYSDATE - 7
FOR UPDATE;
BEGIN
FOR emp_rec IN
emp_cur
LOOP
INSERT INTO emp_history
VALUES (emp_rec.empno, emp_rec.hiredate);
DELETE FROM emp
WHERE CURRENT OF emp_cur;
END LOOP;
END;
Cursor
Variable
Unlike
an explicit cursor, which names the PL/SQL work area for the result set, a
cursor variable is a reference to that work area
Explicit
and implicit cursors are both static in that they are tied to specific queries.
The cursor variable can be opened for any query, even different queries within
a single program execution. It’s dynamic.
Features
Single
cursor variable can be used to fetch from different result sets
Pass
a cursor variable as an argument to a procedure or function
Employ
the full functionality of static PL/SQL cursors for cursor variables
Assign
the contents of one cursor (and its result set) to another cursor variable
REF
CURSOR: Types
REF
CURSOR types can be strong or weak
A
strong REF CURSOR type definition specifies a return type, but a weak
definition does not
Strong
REF CURSOR types are less error-prone because PL/SQL lets you associate a
strongly typed cursor variable only with type-compatible queries
Weak
REF CURSOR types are more flexible because you can associate a weakly typed
cursor variable with any query
Declaring
REF CURSOR Types and Cursor Variables
Two
distinct declaration steps to create a cursor variable
Create a REF CURSOR type
Declare a cursor variable
based on REF CURSOR type
Creating
a REF CURSOR type:
TYPE cur_type_name IS REF CURSOR [
RETURN return_type ];
return-type is the RETURN data
specification for the cursor type. In short, what kind of data will be returned
by a cursor
Strong
cursor type: cursor type with a RETURN clause; associated with a specific
data structure
TYPE emp_type REF CURSOR RETURN
emp%ROWTYPE;
Weak
cursor type: cursor type without a RETURN clause; not
associated with a specific data structure
TYPE emp_type REF CURSOR;
Declaring
a Cursor variable
cursor_variable_name
cursor_type_name;
e.g. v_empno emp_type;
Opening
a Cursor variable
OPEN cursor_variable_name FOR
select_statement;
Fetching
from a Cursor
FETCH cursor_variable_name INTO
record_variable;
FETCH cursor_variable_name INTO
variable1, variable2, …;
REF
Cursor – Weak: Example
DECLARE
TYPE emp_cur IS REF CURSOR;
v_weak_cursor emp_cur;
v_emp_rec emp%ROWTYPE;
v_dept_rec dept%ROWTYPE;
v_operation NUMBER (1) := &op;
BEGIN
IF v_operation = 1
THEN
OPEN v_weak_cursor FOR
SELECT *
FROM emp;
LOOP
FETCH v_weak_cursor
INTO v_emp_rec;
EXIT WHEN v_weak_cursor%NOTFOUND;
DBMS_OUTPUT.put_line
('Ename :' || v_emp_rec.ename);
END LOOP;
CLOSE v_weak_cursor;
ELSE
OPEN v_weak_cursor FOR
SELECT *
FROM dept;
LOOP
FETCH v_weak_cursor
INTO v_dept_rec;
EXIT WHEN v_weak_cursor%NOTFOUND;
DBMS_OUTPUT.put_line
('Deptname :' || v_dept_rec.dname);
END LOOP;
CLOSE v_weak_cursor;
END IF;
END;
REF
Cursor – Strong: Example
DECLARE
TYPE curtype IS REF CURSOR
RETURN emp%ROWTYPE;
refcur curtype;
emprec emp%ROWTYPE;
BEGIN
DBMS_OUTPUT.put_line
('Dept 10 employees are ');
OPEN refcur FOR
SELECT *
FROM emp
WHERE deptno = 10;
LOOP
FETCH refcur
INTO emprec;
EXIT WHEN refcur%NOTFOUND;
DBMS_OUTPUT.put_line
('Ename :' || emprec.ename);
END LOOP;
CLOSE refcur;
DBMS_OUTPUT.put_line
('Dept 20 employees are ');
OPEN refcur FOR
SELECT *
FROM emp
WHERE deptno = 20;
LOOP
FETCH refcur
INTO emprec;
EXIT WHEN refcur%NOTFOUND;
DBMS_OUTPUT.put_line
('Ename :' || emprec.ename);
END LOOP;
CLOSE refcur;
END;
/
Limitations of Cursor
Comparison
operators cannot be used to test cursor variables for equality, inequality,
null, or not null
Null
cannot be assigned to a cursor variable
The
value of a cursor variable cannot be stored in a database column
Static
cursors and cursor variables are not interchangeable; For example, a static
cursor cannot be used in an OPEN FOR statement
No comments:
Post a Comment
